Complete cooling & freezing installations

IMG_0126a.jpg IMG_0128a.jpg IMG_0134a.jpg IMG_0142a.jpg IMG_0143a.jpg

Description / remarks:

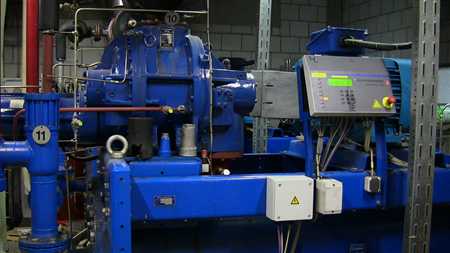

Used in very good maintained condition Gram/Frick industrial freezing pump installation and consists of the following main components:

  • 2 x low pressure Frick screw packages, type TDSH 233S and type GSVII 147, year 2003, (cooling capacity at -40°/-12°C is 600 kW)
  • Each low pressure screw package equipped with:
         Leroy Somer E-motor of 90 kw
         New Siemens PLC / Simatic touchscreen
  • 2 x high pressure Frick screw packages, type TDSH 163L and type GSVII-64, year 2003 (cooling capacity at -12°/+42°C is 750 kW)
  • Each high pressure screw package equipped with:
         Leroy Somer E-motor of 160 kw
         New Siemens PLC / Simatic touchscreen
  • All screw packages are equipped with water/glycol oil coolers, plate type
  • Switch-board with Siemens S7 controller
  • Stahlbau low pressure / medium pressure separators -40°C/-12° combined, 4,8m3/3,6m3 volume, complete with 2 pieces Hermetic cam 2/3 liquid pumps, motor 1,5kW
  • Güntner (water/glycol) air-cooled oil cooler (for outside application) is connected to the water-cooled oil coolers of the compressors
  • 2 x Güntner AGV-H10132x5S (D) air-cooled condensers, each 410 kW at condensing temp. +42°C (If desired, it can be also delivered with an evaporating condenser)
  • All TüV certificates

Mentioned cooling capacity of 600kW is with the refrigerant R717 at-40°C /+35°C.


Cooling capacity:
600 kW/176 tons
Type of refrigerant:
NH3/Ammonia
Voltage:
380 V
Absorbed power:
500 kW
Year of Manufacture:
1998 / 2003
