Water chillers / Ice water installations

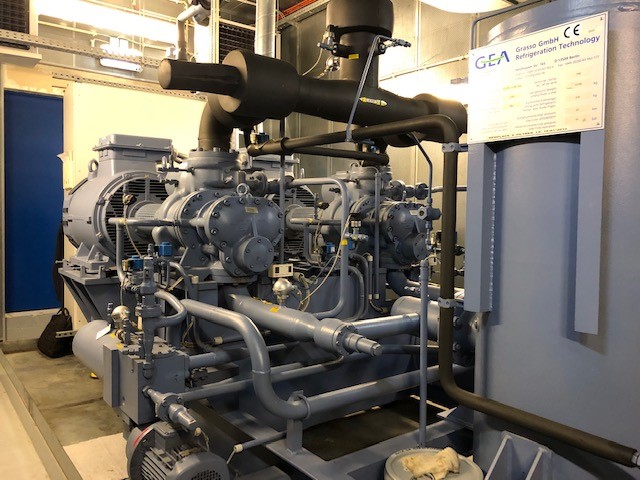

Grasso GEAWater-cooled Chiller-1300kw1.jpg
Grasso GEAWater-cooled Chiller-1300kw1.jpg Grasso GEA Water-cooled water chiller 300 kW-2.jpg Grasso GEA Water-cooled water chiller 1300 kW-3.jpg Grasso GEA Water-cooled water chiller  1300 kW-4.jpg Grasso GEA Water-cooled water chiller 300 kW-5.jpg

Description / remarks:

Used Grasso/GEA water-cooled water chiller. This in very well maintained condition industrial water chiller is equipped with the following main components:

  • On frame-built 2 pieces direct drive Grasso/GEA M1 screw compressors, each with a Schorch 160kW E-motor
  • Central oil separator
  • Oil pump with water cooled oil cooler
  • Alfa-Laval plate cooler AISI 304 connected to a low pressure separator for natural circulation
  • Alfa-Laval water cooled plate condenser AISI 304
  • Switchboard cabinet with GEA controller
  • All required TÜV certificates
  • Operating hours: C1: 20 000h C2: 24 000h

Mentioned cooling capacity is with a water inlet temperature of +12°C and a water outlet temperature of +7°C.
Cooling capacity at a glycol outlet of -35°C is approx.
260 kW.


4 in stock
Cooling capacity:
1300 kW/382.35 tons
Type of refrigerant:
Ammonia/R717
Voltage:
50Hz/60Hz 400/460 V
Absorbed power:
300 kW
Year of Manufacture:
2006
Dimensions (LxWxH):
810 x 275 x 350 cm
Weight (kg):
13.100 kg
