Description / remarks:

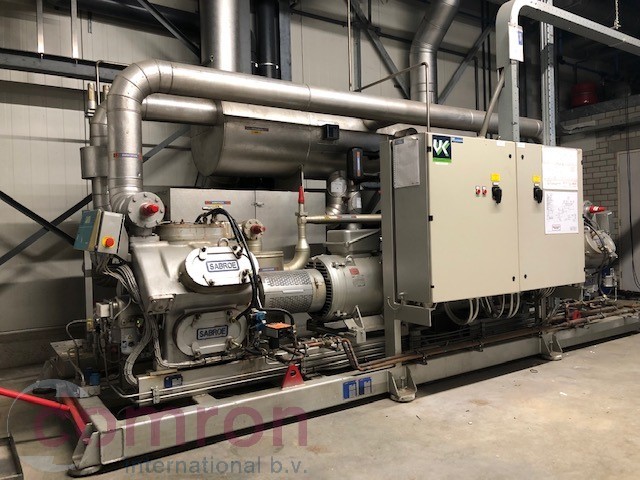

Used Sabroe/York industrial water-cooled water chiller. This in very good maintained condition industrial water-cooled water chiller is equipped with the following main components:
- On frame-built 2 pieces direct driven Sabroe 106L piston compressors with each Schorch 75kW E-motors 1460 RPM
- Oil separators
- Water-cooled head cooling for the compressors
- Alfa Laval plate cooler/heat exchanger type M10 REF 117,3m3/h ,freezium in/out -2°C/-6°C
- Low pressure separator for natural ammonia circulation coupled to the plate cooler
- 2 pieces water-cooled condensers, Alfa Laval type M10REF each 49.4m3/h water out/in +34°C/+27°C
- 2 pieces Unisab II controllers for the controller of the compressors
- Switch box with all necessary relays/safety devices
- All required pressure certificates
Mentioned cooling capacity is at a freezium outlet temp. of -6°C and an inlet temp. of -2°C, flow 117,3 m3/h.
