Spiral- tunnel- IQF- flow- blast- plate & belt freezers

IMG_3734_band.jpg IMG_3735_band..jpg IMG_3736_band..jpg IMG_3737_band..jpg IMG_3738_band..jpg

Description / remarks:

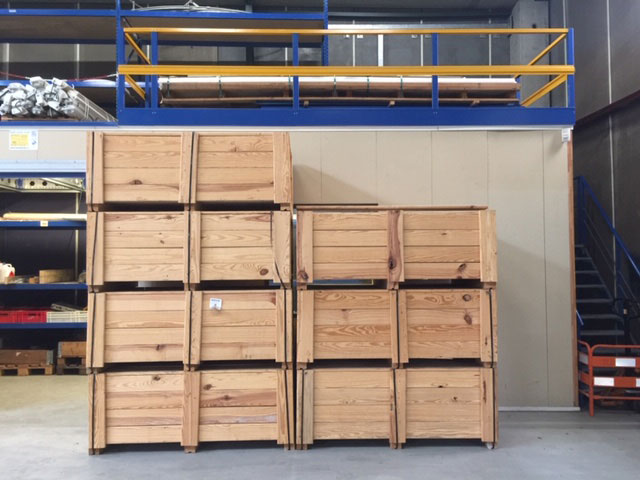

New, still in the wooden crates, Cambridge 405 meter fine mesh belt B36 count, 1 inch pitch, heavy duty link and double compression weld, belt width 763mm/30”, turn ratio 2,2 till 2,5.


Cooling capacity:
kW/ tons


Foto 1 rev-Jackstone - Verticale Platenvriezers 73kW.jpg
Foto 1 rev-Jackstone - Verticale Platenvriezers 73kW.jpg Foto 2 rev-Jackstone - Verticale Platenvriezers 73kW.jpg Foto 3 rev-Jackstone - Verticale Platenvriezers 73kW.jpg Foto 4rev-Jackstone - Verticale Platenvriezers 73kW.jpg thumbnail_image005-image002-ackstone-Vertical Plate Freezers73kw-4.jpg

Description / remarks:

Used Jackstone 32 stations vertical plate freezers.

These vertical plate freezers in very good condition (each only 3 months per year in production for freezing fish products) have a freezing capacity of approx. 586kg fish / hour from +10°C to -18°C in the core of the product.

Specifications of the Jackstone vertical plate freezer:

  • 32 stations with a block size of: 106 x 7.5 x 55 cm (LxWxH).
  • Cooling capacity per plate freezer with NH³ liquid is approx.73kW at a temperature of -40°C.
  • Freezing time/cycle per plate freezer for whole fish is approx. 130min + 30 minutes for loading and unloading = 160 min per cycle
  • Freezing capacity per plate freezer is approx. 586 kg/h.
  • Hydraulic set available when purchasing more than 15 pieces of plate freezers.
  • Hot gas defrost set with choice of manual or automatic.
  • Aluminum block dividers for 64 blocks per plate freezer (output)Machine serial number L.H 500148-3 / Type LDN-395290
  • Plate Freezer will be supplied with all necessary pressure certificates

The  Jackstone Vertical Plate Freezers will be completely checked by Comron International after sale in case of mechanical/pneumatic defects. The evaporator blocks will be tested on nitrogen pressure and will be delivered with 2 bar nitrogen pressure and with 3 months guarantee.


32 in stock
Cooling capacity:
73 kW/21.47 tons
Type of refrigerant:
R717/NH³ pomp
Year of Manufacture:
2000
Dimensions (LxWxH):
394 x 166 x 140 cm
Weight (kg):
2.160 kg

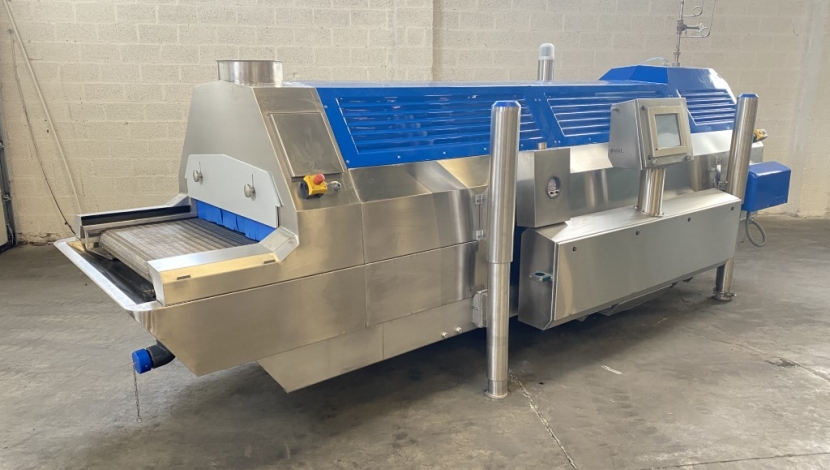

tunnel freezer 100kw.jpg
tunnel freezer 100kw.jpg Linde CRYOLINE MT 1250-Used Cryogen-Nitrogen Tunnel Freezer 100kW-2.jpg Linde CRYOLINE MT 1250 - Used Cryogen-Nitrogen Tunnel Freezer 100kW-3.jpg Linde CRYOLINE MT 1250 - Used Cryogen-Nitrogen Tunnel Freezer 100kW-4.jpg Linde CRYOLINE MT 1250 - Used Cryogen-Nitrogen Tunnel Freezer 100kW-5.jpg

Description / remarks:

Used cryogen/nitrogen tunnel freezer: brand Linde type CRYOLINE MT 1250, serial number 5-090. This, in very good condition cryogen/nitrogen tunnel freezer has a high freezing capacity with a small floor surface and very suitable for the quick IQF cooling / freezing of various meat/fish/fruit/vegetables/dairy and bakery products. Maximum product capacity is approx. 800 kg/h, depending on the type of product and infeed temperature. Specifications of this used cryogen freezer:

  • Completely made of stainless steel, inclusive housing
  • Stainless steel belt (fine stainless steel meshbelt)
  • Infeed/outfeed height: 900 (+/-100) mm
  • Net belt width 1250 mm
  • Freezing belt length 4000 mm
  • Maximum product height 100 mm
  • 6 pieces internal, adjustable high-speed fans
  • Adjustable holding time between  0,5 and 20 min
  • Stainless steel switch-board cabinet with Siemens PLC en HMI Simatic touchscreen

The Linde cryogen/nitrogen tunnel freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil and the freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
100 kW/29.41 tons
Type of refrigerant:
N2/Nitrogen
Voltage:
380-500V (50-60Hz) V
Absorbed power:
5 kW
Year of Manufacture:
2010
Dimensions (LxWxH):
550 x 217 x 210 cm
Weight (kg):
2.000 kg

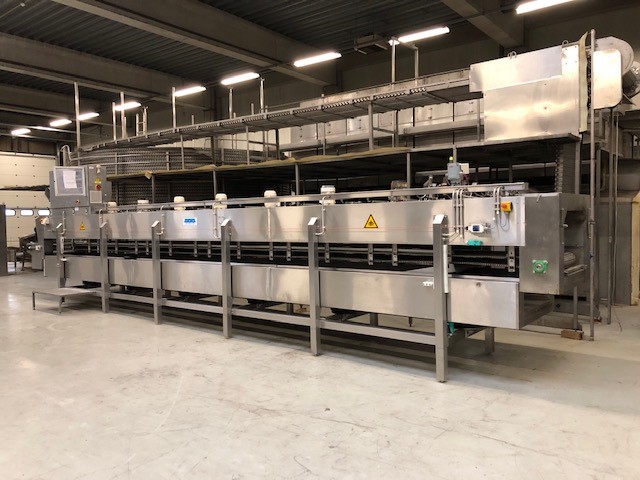

CES type LT-LIN-9 mx 0.66-~2-Tunnel Freezer100kw.jpg‎.jpg
CES type LT-LIN-9 mx 0.66-~2-Tunnel Freezer100kw.jpg‎.jpg CES type LT-LIN-9 mx 0.66-~1-Tunnel Freezer100kw.jpg‎.jpg CES type LT-LIN-9 mx 0.66-~3-Tunnel Freezer100kw.jpg‎.jpg CES type LT-LIN-9 mx 0.66-~4-Tunnel Freezer100kw.jpg‎.jpg CES type LT-LIN-9 mx 0.66-~5-Tunnel Freezer100kw.jpg‎.jpg

Description / remarks:

Used cryogen/nitrogen tunnel freezer: brand CES type LT-LIN-9 mx 0.66-PODB, serial number CES 676. This, in very good condition cryogen/nitrogen tunnel freezer has a high freezing capacity with a small floor surface and very suitable for the quick IQF cooling / freezing of various meat/fish/fruit/vegetables/dairy and bakery products. Maximum product capacity is approx. 1.200 kg/h, depending on the type of product and infeed temperature. Capacity based on meatballs and hamburgers 10 to 100gr, infeed temperature +85°C with a core temperature of -6°C, output approx. 700kg/h. Specifications of this used cryogen freezer:

  • Completely made of stainless steel, inclusive housing.
  • Stainless steel belt (fine stainless steel meshbelt).
  • Infeed/outfeed height: 1100 / 1200 mm.
  • Net belt width 640 mm.
  • Freezing belt length 9900 mm.
  • Maximum product height 150 mm.
  • 8 pieces internal, adjustable high-speed fans,
    brand AEG 0,75 kW.
  • Adjustable holding time between  0,5 and 40 min.
  • Stainless steel switch-board cabinet with all controllers.
  • Masoneilan Lin controller.
  • Exhaust fan.

The CES cryogen/nitrogen tunnel freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil and the freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
100 kW/29.41 tons
Type of refrigerant:
N2/Nitrogen
Voltage:
380-500V (50-60Hz) V
Absorbed power:
7 kW
Year of Manufacture:
2002
Dimensions (LxWxH):
1010 x 131 x 247 cm
Weight (kg):
4.000 kg

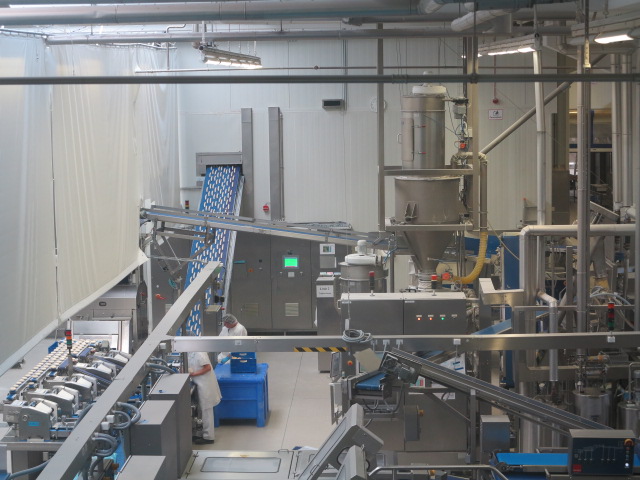

IMG_0751-2_100kw.spiralfreezer.jpg Heinen100kW-IMG_0782.jpg Heinen100kW-IMG_0785.jpg Heinen100kW-IMG_0778.jpg Heinen100kW-IMG_0777.jpg

Description / remarks:

Used Spiral Cooler: brand Heinen, type SP6.6/10.2-11-20SX. This in very good condition spiral cooler is designed for a production capacity of 1100 kg/h for cooling dough products from + 25°C to +9°C, but it can be increased to a higher capacity with a lower final temperature if desired. Specifications of this used spiral cooler:

  • Infeed / outfeed: North/ West, infeed above /outfeed below (if desired, it can be also delivered with North/South configuration)
  • Infeed / outfeed height: 3800 mm / 900 mm
  • Direction of rotation of the belt: clockwise
  • Type of belt: plastic, type B48-12-15
  • Gross/net belt width: 26” 660 mm / 24” 610 mm
  • Net belt length: 364 m
  • Maximum product height 80 mm
  • Number of tiers: 20
  • Band speed: 4.8 – 12.1 m/min.
  • Holding time range: 75-30 min.
  • Goedhart hot-dip galvanized cooling evaporators for Ammonia or glycol application
  • Stainless steel switch box with Siemens S7 PLC/ Simatic touchscreen

Spiral cooler will be delivered without panels/housing and cooling installation (if desired, this can be also arranged by Comron International BV). Note: this spiral cooler can also be sold as ambient cooler.

The spiral cooler will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the it will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
100 kW/29 tons
Type of refrigerant:
R717/Ammonia/Glycol
Voltage:
400 V
Absorbed power:
5,5 kW
Year of Manufacture:
2009
Dimensions (LxWxH):
800 x 800 x 450 cm


SAB Barth GmbH Spiraalkoeler 140kw Foto 1.jpg
SAB Barth GmbH Spiraalkoeler 140kw Foto 1.jpg SAB Barth GmbH Spiraalkoeler 140kw Foto 2.jpg SAB Barth GmbH Spiraalkoeler 140kw Foto 3.jpg SAB Barth GmbH Spiraalkoeler 140kw Foto 4.jpg SAB Barth GmbH Spiraalkoeler 140kw Foto 5.jpg

Description / remarks:

Used and in very good condition spiral cooler/spiral freezer brand SAB, type SK-S/1 11.25-660. This in new condition spiral cooler/freezer (only 1 year in production) has a production capacity of 1,750 kg/h of chocolate products from +80 °C to +5 °C in the core of the product. If desired, we can convert this spiral cooler into a spiral freezer at additional costs, with a maximum freezing capacity of approx. 1250kg/h depending on the product data.

Specification of this used spiral cooler/freezer:

  • Input/Output: North/East (If desired, we can convert this spiral cooler/freezer to a North/South or North/North configuration at an additional cost.
  • Direction of rotation of the belt: counterclockwise.
  • Gross/Net band width 660/600mm.
  • Belt type: Plastic.
  • Maximum product height 100mm.
  • Number of tiers 11.25.
  • Total effective belt length 158M, including input/output.
  • Drum diameter 315cm.
  • GEA/Goedhart stainless steel cooling evaporator type PLK. S - 1285m² - Factory number PJV12131 - 304dm³ - 1.620kg. Fluid E-Glycol equipped with 6 pieces of Nuaire high-pressure fans (at an additional cost we can carry out the cooler block for NH3 application).
  • Stainless steel control box with Siemens S7 1200 series, HMI touchscreen with graphical displays.
  • SAB SIP cleaning system.
  • Original stainless steel floor.
  • Construction is made entirely of stainless steel.

Cooling capacity:
140 kW/41.17 tons
Type of refrigerant:
Glycol/NH3 pomp
Voltage:
400 V
Absorbed power:
9 kW
Year of Manufacture:
2013
Dimensions (LxWxH):
810 x 586 x 305 cm


Frigoscandia Advantec Used impingem.Freezer-171kW-1.jpg
Frigoscandia Advantec Used impingem.Freezer-171kW-1.jpg Frigoscandia Advantec Used impingem.Freezer-171kW-2.jpg Frigoscandia Advantec Used impingem.Freezer-171kW-3.jpg Frigoscandia Advantec Used impingem.Freezer-171kW-4.jpg Frigoscandia Advantec Used impingem.Freezer-171kW-5.jpg

Description / remarks:

Used and in condition as new: Frigoscandia Impingement Freezer type Advantec 2M-1250-1, Manufacturing number 1080209, Order number: 1220224. This Impingement/Injection Freezer is a cost-effective alternative to cryogenic freezing for products like hamburgers, cooked shrimps, fish fillets, bakery/bread products, ready meals and so much more. Capacity of this used Impingement Freezer is approx. 1500 kg/h based on hamburgers with an infeed temperature of ± 5°C. This Impingement Freezer (patented by Frigoscandia JBT) is in very good condition and has the advantage that with their limited dimensions it has a fast and efficient freezing capacity. Specifications of this used Frigoscandia Freezer:

  • Complete stainless steel construction and stainless steel evaporators (DX System)
  • ADF defrost system for a continuous freezing process, of a maximum 22 hours of production
  • Single belt, fine mesh, with the dimensions of length 11410mm, and width 1250mm
  • Belt speed: minimum/maximum 0.3-6 m/min
  • Holding time 1.9-27 min
  • Belt wash system
  • Stainless steel switch-board cabinet with Siemens S7 PLC controller, HMI touchscreen
  • Original book, with all drawings and pressure certificates
  • Complete DX Bitzer freezing installation consists of on frame built 3 pieces Bitzer screw compressors type HSN 7471-75-40P, the complete control cabinet and an air-cooled condenser and oil cooler. Design data of the Bitzer freezing installation is 171kW at evaporating temperature of -40°C and condensing temperature of +40°C with the refrigerant R507A



This Frigoscandia Advantec Impingement Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporators coils will be supplied on 2 bar nitrogen pressure. The impingement freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
171 kW/50 tons
Type of refrigerant:
R507/Freon DX System
Voltage:
400 / 460 V
Absorbed power:
43 kW
Year of Manufacture:
2010
Dimensions (LxWxH):
1260 x 400 x 315 cm
Weight (kg):
12.000 kg


Foto 1-Spiraalvriezer186kw.jpg
Foto 1-Spiraalvriezer186kw.jpg Foto 2-Spiraalvriezer186kw.jpg Foto 3-Spiraalvriezer186kw.jpg Foto 4-Spiraalvriezer186kw.jpg Foto 5-Spiraalvriezer186kw.jpg

Description / remarks:

Used Spiral freezer: brand Mecatherm type SCS-75-12-150. This spiral freezer in very good condition has a production capacity of approx. 1,500 kg/h based on cake products, with an inlet temperature of +15°C.  The freezing capacity depends on the type of product and input temperature.

 Specifications of this used spiral freezer:

  • Direction of rotation of the belt : counter clockwise.
  • On the front side 8.30M right side input, left side output West/West.
  • Input/output height with floor : 1.200mm/3.145mm.
  • Belt type: Asworth stainless steel.
  • Gross/net bandwidth 760mm / 700mm
  • Maximum product height 75mm
  • Height between the tiers (tier pitch) 80mm
  • Number of tiers 13 (length band per floor approx. 150M)
  • Effective surface belt area 115M²
  • Drum drive direct.
  • Galvanized DX freezing evaporators with 6 pieces of high pressure fans each 4kW, with the option of water defrosting.
  • Complete metal construction of Spiral Freezer is galvanized (very robust).
  • Stainless steel control cabinet with new Siemens S7 1200 serie, HMI touchscreen with graphical display.
  • Original books with pressure certificates for the evaporators, drawings of the spiral freezer, housing and floor.
  • Bitzer freeze package consist of:

- 3 pieces semi hermetic screw compressors type HSN-7461-70-40P

- Control cabinet with PLC

- High pressure liquid tank with filter dryer

- Liquid separator / Manifold

- Air-cooled Oil cooler

- Oil separator

- Air-cooled condenser brand Thermofin

- Design data of the Bitzer installation is 186 kW at -38°C evaporation    temperature.

  • Complete metal under frame and RVS floor for the spiral freezer.
  • Spiral freezer has been complete overhauled by Mecatherm in 2013.

This spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).

This Mecatherm Spiral Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporators coils and cooling installation will be supplied on 2 bar nitrogen pressure. The spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
186 kW/55 tons
Type of refrigerant:
404A/R507
Voltage:
400 V
Absorbed power:
32 kW
Year of Manufacture:
2007/2013
Dimensions (LxWxH):
830 x 653 x 467 cm

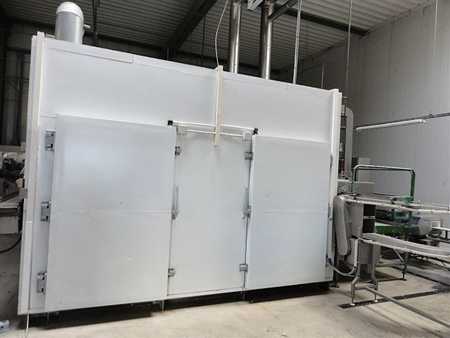

DSC03886.jpg DSC03887.jpg DSCN6264.JPG DSCN6266.JPG DSCN6263.JPG

Description / remarks:

Used Frigoscandia horizontal plate freezer. This in condition as new complete horizontal full automatic plate freezer (completely overhauled in 2009) with a production capacity that depends on the product specifications. Specifications of this used plate freezer:

  • Infeed / outfeed: North/South
  • 5 plates of 380 x 190 cm (149 inch x 75 inch)
  • 14 stations
  • Suitable for various products such as:
    Fish in sauce (size: 140 x 100 x 29 mm, weight: 0,17 kg, amount per station: 507, weight per station: 86,19 kg, freeze time: 40 min., infeed per station: 760 packs/h, infeed per station: 129, 2 kg/h, leading edge: 140, trailing edge: 100).
    Hamburgers (size: 150 x 130 x 35 mm, weight: 0,45 kg, amount per station: 360, weight per station: 162 kg, freeze time: 70 min., infeed per station: 308 packs/h, infeed per station: 138,62 kg/h, leading edge: 150, trailing edge: 130).
    Spinach (size: 142 x 100 x 50mm, weight: 0,45 kg, amount per station: 507, weight per station: 228,15 kg, freeze time: 90 min., infeed per station: 338 packs/h, infeed per station: 152,1 kg/h, leading edge: 142, trailing edge: 100).
    Ice cream (size: 90 x 90 x 41 mm, weight: 312 ml, amount per station: 903, weight per station: 281 liters, freeze time: 35 min., infeed per station: 1548 packs/h, infeed per station: 483 liters/h, leading edge: 90, trailing edge: 90).
    Vegetable lasagna (size: 140 x 110 x 48 mm, weight: 0,297 kg, amount per station: 455, weight per station: 135,135 kg, freeze time: 90 min., infeed per station: 303 packs/h, infeed per station: 89,991 kg/h, leading edge: 140, trailing edge: 110).

This freezer has 14 stations, so the totals can multiplied by 14 to get what you can freeze and for total infeed.

The freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the it will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
190 kW/56 tons
Type of refrigerant:
R717/Freon Pomp
Voltage:
400 V
Year of Manufacture:
1998
Dimensions (LxWxH):
570 x 336 x 311 cm
Weight (kg):
10500 kg

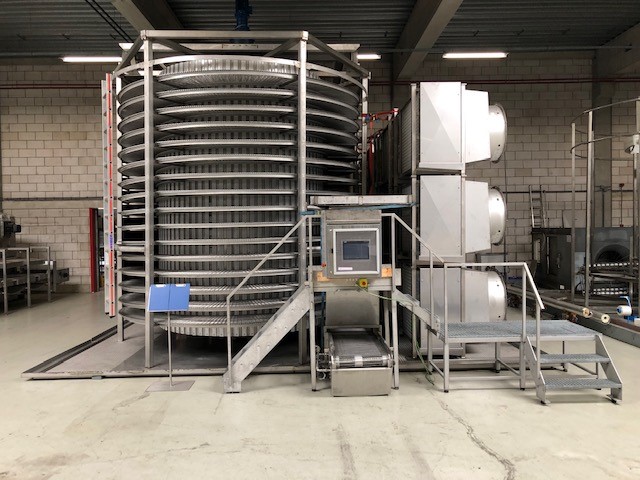

PHOTO1-CES-GebruikteDubbeleSpiraalkoeler-Vriezer208kW.jpg PHOTO2-CES-GebruikteDubbeleSpiraalkoeler-Vriezer208kW.jpg PHOTO3-CES-GebruikteDubbeleSpiraalkoeler-Vriezer208kW.jpg PHOTO4-CES-GebruikteDubbeleSpiraalkoeler-Vriezer208kW.jpg PHOTO5-CES-GebruikteDubbeleSpiraalkoeler-Vriezer208kW.jpg

Description / remarks:

Used Twin Spiral Cooler/Freezer: brand CES type 2017. This, in very good condition twin spiral cooler/freezer has been delivered by the company Dohmeyer in the year 2011. In 2017, this twin spiral cooler/freezer has been completely overhauled by the company CES, equipped with new operating systems (Siemens S7 / Simatic touchscreen) and a new Bitzer CO2 – transcritical DX cooling/freezing system, built in a low noise container. Maximal production capacity is approx. 1.500 kg/h depending on the product data. Specifications of this used twin spiral cooler/freezer:

  • Completely made of stainless steel
  • Stainless steel non-slip floor
  • Infeed / outfeed: North/South (can also be delivered in North/South or West/West configuration for extra charge)
  • Infeed/outfeed height: 920 / 920 mm
  • Direction of rotation of the belt: counter clockwise
  • Type of belt: stainless steel Ashworth belt type Omni-Grid 100 B24-12-17
  • Bruto belt width: 600 mm
  • Effective belt width: 550 mm
  • Maximum product height: 120mm, height between beams and belt 160 mm
  • Number of tiers: 16 per drum, total 32 pieces
  • Effective belt length approx.. 374 m
  • Drum diameter outside: 2720 mm per drum
  • Adjustable band speed between min. 3m/min. and max. 7m/min.
  • 6 pieces Kelvion stainless steel/aluminum cooling evaporators and 6 pieces Kelvion stainless steel/aluminum blast freeze evaporators with each 1 piece high pressure ventilator of 3 kW, total 36 kW with hot gas defrost in block and drip tray
  • RVS stainless steel switch-box, equipped with Siemens S7 / Simatic touchscreen
  • Belt cleaning installation
  • Bitzer CO2 – transcritical DX cooling/freezing system built in a low noise container
  • At an additional charge 2 Goedhart/Kelvion cold storage evaporators with a total capacity of 36kW at evaporation temperature of -30°C with CO2 refrigerant, suitable for a cold store of approx. 2000m3 and connected to the Bitzer CO2installation.



Cooling capacity of 208 kW with the refrigerant R744/CO2 at an evaporating temperature of -40°C. Cooling capacity at an evaporating temperature of -10°C is 153 kW.

This twin spiral cooler/freezer will be delivered without panels/floor/housing (if desired, this can be also arranged by Comron International BV)

The spiral cooler/freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
208 kW/61.17 tons
Type of refrigerant:
CO2
Voltage:
400 V
Absorbed power:
36 kW
Year of Manufacture:
2011/2017
Dimensions (LxWxH):
875 x 725 x 510 cm


W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer1..jpg
W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer1..jpg W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer2..jpg W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer3..jpg W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer4..jpg W.D.Systems LTD11925-00GA-UsedTwinSpiralFreezer5..jpg

Description / remarks:

Used Spiral freezer: brand W.D. Systems LTD type 11925-00GA-004. This double drum/twin spiral freezer has only been in operation for 1/2 year and is really still in new condition. The spiral freezer has a production capacity of approx. 1800 kg/h based on bakery products.

Specifications of this used spiral freezer:

  • Input/output: North/South
  • Direction of rotation of the belt: clockwise
  • On the front side 8.26m left side input, left rear output
  • Input/output height with insulated floor: 1006mm
  • Brand of belt / type: Twentebelt outside direct drive TSF40 stainless steel AISI 304
  • Gross/net bandwidth 813mm / 723mm
  • Maximum product height 100mm
  • Height between the beams (tier pitch) 170mm
  • Number of tiers per drum 15 in total 30
  • Length of belt per tier 13.8m
  • Belt length without input/output: 424m
  • Belt drive on the outside (no drum present so less wear, lower energy consumption and better control of hygiene in the freezer)
  • Two pieces CO2/Freon DX system freeze evaporators brand: Coolers and Condensers model HE-SP-Coil, maximum pressure 85 bar with each 2 pcs high pressure fans of 5 kW each, total air circulation 86400 m3/h with the option of water defrosting
  • Stainless steel control cabinet with Siemens 1200 series PLC and HMI comfort display with graphic displays
  • Load product approx. 4 kg/m
  • Belt speed adjustable from 8m/min to 3.5m/min.
  • Inside/outside diameter belt 2764/4390mm
  • Original stainless anti-slip floor
  • Original books/manuals with pressure certificates for the evaporators, drawings of the spiral freezer, housing and floor

This spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
210 kW/62 tons
Type of refrigerant:
CO2/Freon DX system
Voltage:
400 V
Absorbed power:
26 kW
Year of Manufacture:
2021
Dimensions (LxWxH):
1074 x 827 x 442 cm

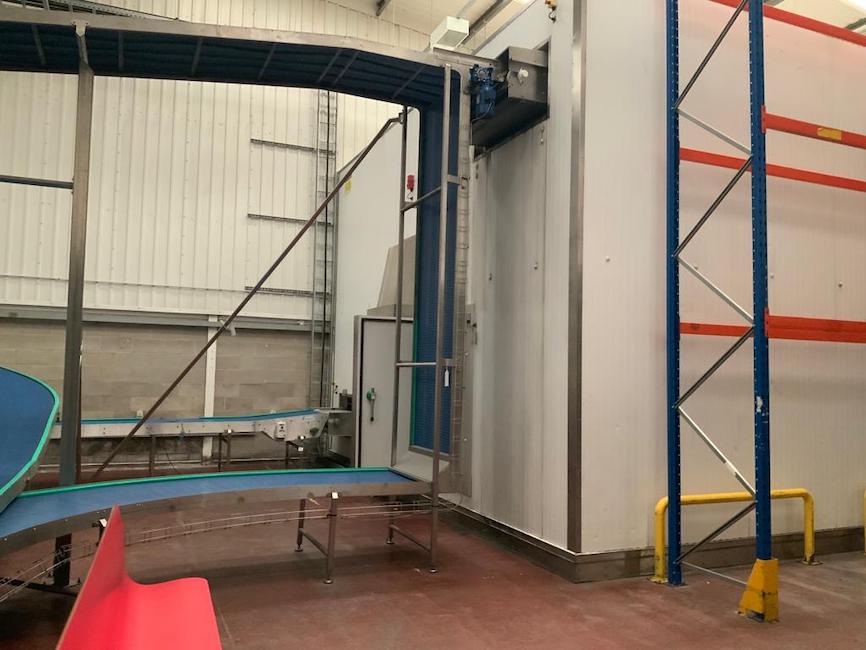

Foto1-3079-GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg
Foto1-3079-GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg Foto2-7015GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg Foto3-7924GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg Foto4-7791GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg Foto5-5398GEA Spiraalvriezer – 42(1.7) 15-5-210.jpg

Description / remarks:

Used Spiral freezer: brand GEA 42(1.7)15-5-210. This spiral freezer in very good condition has a production capacity of approx. 1,500 kg/h based on cake products, with an inlet temperature of +15°C. The freezing capacity depends on the type of product and input temperature.

Specifications of this used spiral freezer:

  • Input/output: North/North (at extra cost we can carry it out in a North/South configuration.)
  • Direction of rotation of the belt : clockwise.
  • On the front side 7.20M left side input, right side output.
  • Input/output height with floor : 925mm/428mm.
  • Belt type: 42(1.7) 16-210 Asworth stainless steel.
  • Gross/net bandwidth 1066mm / 1016mm
  • Maximum product height 120mm
  • Height between the tiers (tier pitch) 210mm
  • Number of tiers per drum 15.5 (length band per tier 18.09M)
  • Belt length effective 280M / effective belt area 232M²
  • Drum drive direct.
  • Stainless steel Goedhart/Kelvion DX freezing evaporators with 4 pieces of high pressure fans each 15kW, with the option of water defrosting after 120 hours depending on the product data.
  • Stainless steel control cabinet with PLC.
  • Original books with pressure certificates for the evaporators, drawings of the spiral freezer, housing and floor.
    At extra cost: built in a low-noise container Bitzer DX screw freezer installation consisting of:
    - 2 pieces semi hermetic screw compressors type HSN-8591-160-40P
    - Control cabinet
    - High pressure liquid tank
    - Liquid separator
    - Oil separator
    - Eco tank
    - Separate GEA air cooled condenser
    - Design data of the Bitzer installation 220 kW at -38°C evaporation
  • Complete metal frame for the floor of the spiral freezer.

This spiral freezer will be delivered without floor/panels/housing (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
220 kW/64.70 tons
Type of refrigerant:
R507
Voltage:
415 V
Absorbed power:
63 kW
Year of Manufacture:
2012
Dimensions (LxWxH):
1022 x 720 x 492 cm

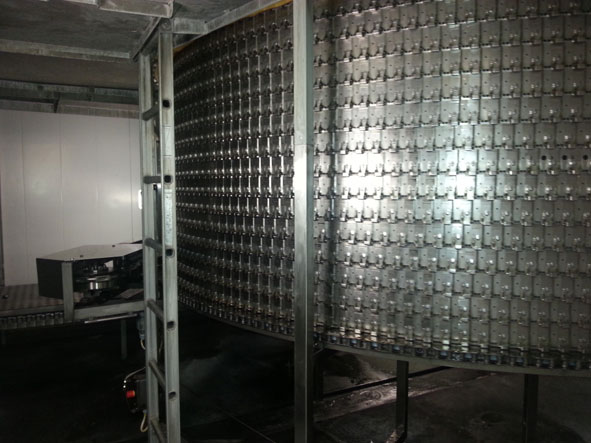

freezerGCM-76-foto-3.jpg freezerGCM-76-foto-2.jpg Inside-drum.jpg freezerGCM-76-foto-4.jpg freezerGCM-76-foto-5a.jpg

Description / remarks:

Used Spiral Freezer: Frigoscandia/JBT GYRoCOMPACT type GCM 76-08-38-14-NS-DE. This in very good condition spiral freezer has a freezing capacity of approx. 1.800kg/h on basis of dough products. Production capacity depends on the product data. Specifications of this used spiral freezer:

  • Infeed / outfeed: North/South (infeed above /outfeed below)
  • Input/output height: 4030 mm/925mm
  • Direction of rotation of the belt: clockwise
  • Gross belt width: 760mm / net belt width: 704mm
  • Maximum product height 65mm
  • Number of tiers: 38 (13,1m per tier), belt length 520m, belt surface 292m2
  • Switch-box with Siemens PLC and frequency converters
  • Hot gas/water defrost
  • 3 original floor parts

Spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
224 kW/66 tons
Type of refrigerant:
NH3 Ammonia/Freon Pomp
Voltage:
400 V
Absorbed power:
50 kW
Year of Manufacture:
1999
Dimensions (LxWxH):
860 x 480 x 510 cm

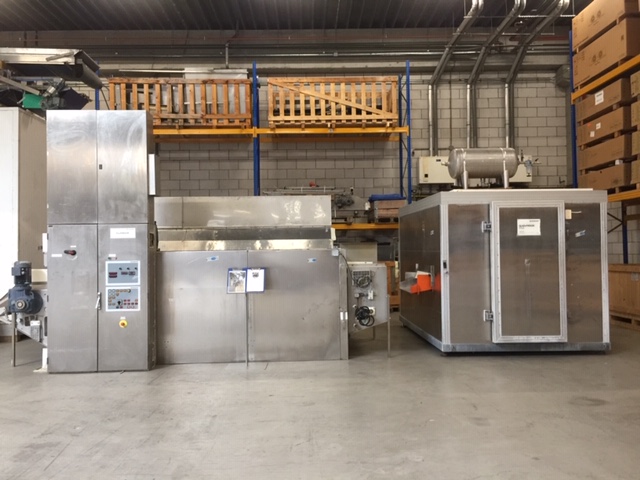

IMG_8289_232kw.flow freezer.jpg
IMG_8289_232kw.flow freezer.jpg IMG_8301_232kw.flow freezer.jpg IMG_8295_232kw.flow freezer.jpg IMG_8293_232kw.flow freezer.jpg IMG_8299_232kw.flow freezer.jpg

Description / remarks:

Used Flow Freezer with Glazo Freezer. These in good condition flow freezer was used for freezing bits of Kebab meat, but it is suitable for various products, such as vegetables and fruit products, shrimps, fries, etc . Specifications of these used freezers:

  • Frigoscandia Flow Freezer model MX32, manufacture nr 240065, year of manufacture 1995, 3 x 380 V – 3 x 460 V 50/60 Hz 42 kW/67 kVA E-power, capacity of 1950 kg/h based on peas with an input temperature of +15°C and an output temperature of -18°C, refrigerant R717/Ammonia/Freon pump circulation. Flow freezer is equipped with ADF (automatic defrost system for a longer continuous blast freeze process, max. 22 hour production), 1 piece galvanized cooler and stainless steel switch box with Siemens PLC. Plastic two-stage belt system (patent by Frigoscandia) which works as follows: two separate plastic belts goes into the tunnel in line after each other with a pre-freeze section where the products are slightly frozen on the outside, then the products go to the after-freeze section (2nd belt) where the products are frozen into the core up to a minimum temperature of -18°C.
  • Frigoscandia Glazo Freezer model P4, year of construction 1995, 380 – 460 V 50/60 Hz, 3 Ph 9 kW/11.5 kVA E-power, 80 dB, weight 2000kg, capacity 1950kg/h based on peas with an input temperature of +15°C and an output temperature of 0°C, refrigerant R717/Ammonia/Freon pump circulation. Glazo freezer is equipped with stainless steel s infeed shaker, tray width 900 mm, input/output height 1300mm / 725 mm, dimensions of isolated housing (LxWxH) 2230 mm x 3150 mm x 2020 mm. Evaporating block with ventilator motor. Cooling capacity of the Glazo Freezer is approx. 35 kW at evaporating temp. of -10°C.
  • The Glazo Freezer that is placed in line with the Flow Freezer works according to the following principle: the product that comes from the production line will be frozen partially on the outside before it will be distributed over the belt of the Freezer by the infeed shaker, it gives extra capacity in the Flow Freezer.

Freezer will be delivered with original floor, but without panels/housing. Further, the freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the flow freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
232 kW/68 tons
Type of refrigerant:
R717/Ammonia/Freon Pomp
Voltage:
380 / 460 V
Absorbed power:
56 kW
Year of Manufacture:
1996
Dimensions (LxWxH):
380 x 470 x 370 cm


IMG_1889-260kw.spiral freezer.jpg
IMG_1889-260kw.spiral freezer.jpg IMG_1890-260kw.spiral freezer.jpg IMG_1891-260kw.spiral freezer.jpg IMG_0778-260kw-freezer.jpg IMG_1892-260kw.spiral freezer.jpg

Description / remarks:

Used Spiral Freezer: brand Heinen-Arctic, type SP6.6/10.2-11-20SX. This in very good condition spiral freezer has been designed for a maximum production capacity of 2.000 kg/h depending on the type of product. Specifications of this used spiral freezer:

  • Infeed / outfeed: North/Zuid
  • Input/output height: 900mm / 3800mm
  • Direction of rotation of the belt: counter clockwise
  • Type of belt: plastic, type B48-12-15
  • Gross / Net belt width: 26″ 660mm / 24″ 610mm
  • Net belt length: 364m
  • Maximum product height: 80mm
  • Number of tiers: 20
  • Adjustable band speed between 4,8-12,1m/min
  • Holding time range 75 – 30 min
  • RETECH hot-dip galvanized freezing evaporator for Ammonia or Freon pump application, equipped with 3 MEZ high pressure ventilators each 11 kW, air flow each 42.000 m³, total 125.000 m³
  • Stainless steel control box with Siemens S7 PLC/Simatic touchscreen

This in top condition Heinen spiral freezer will be delivered without floor and panels/housing (if desired, this can be also arranged by Comron International BV).

Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
260 kW/76 tons
Type of refrigerant:
R717/Ammonia/Freon Pomp
Voltage:
400 V
Absorbed power:
40 kW
Year of Manufacture:
2009
Dimensions (LxWxH):
800 x 800 x 450 cm

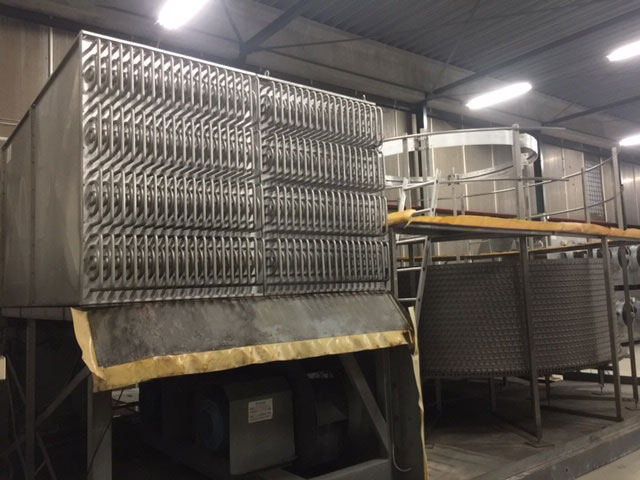

IMG_4947_290kw_freezer..jpg IMG_4944_290kw_freezer.jpg IMG_4943_290kw_freezer.jpg IMG_4953_290kw_freezer.jpg IMG_4950_290kw_freezer.jpg

Description / remarks:

Used Spiral Freezer: Frigoscandia/JBT GYRoCOMPACT type GCM 76-08-40-16-NZ-CCR. This, in very good condition Frigoscandia Freezer (the spiral freezer will be completely overhauled after sale and delivered with a 40 tiers belt for a maximum product height of 65mm) with a production capacity of between 1.800 and 2.200 kg/h which depends on the type of product, input temperature and product information. Specifications of this used spiral freezer:

  • Infeed / outfeed: North/South
  • Direction of rotation of the belt: counter clockwise
  • Gross belt width: 760mm / net belt width: 704mm
  • Maximum product height 65mm
  • Number of tiers: 40 (13,1m per tier = 524m and with belt surface 307m2)
  • ADF defrost system for a continuous freezing process, of a maximum 22 hours of production
  • Stainless steel Thermofin freeze evaporators, consisting of the 2 blocks each 362 liter , year of manufacture 2009
  • Stainless steelSwitch-box with new Siemens S7 PLC/Simatic touchscreen and new wiring
  • Original insulated floor. For an additional price, the floor will be covered with stainless steel

  • Belt wash installation
  • Guarantee 3 months

Spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).



The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
260 kW/76 tons
Type of refrigerant:
R717/Ammonia/Freon Pump
Voltage:
400 V
Absorbed power:
49 kW
Year of Manufacture:
1996/2009
Dimensions (LxWxH):
860 x 480 x 498 cm

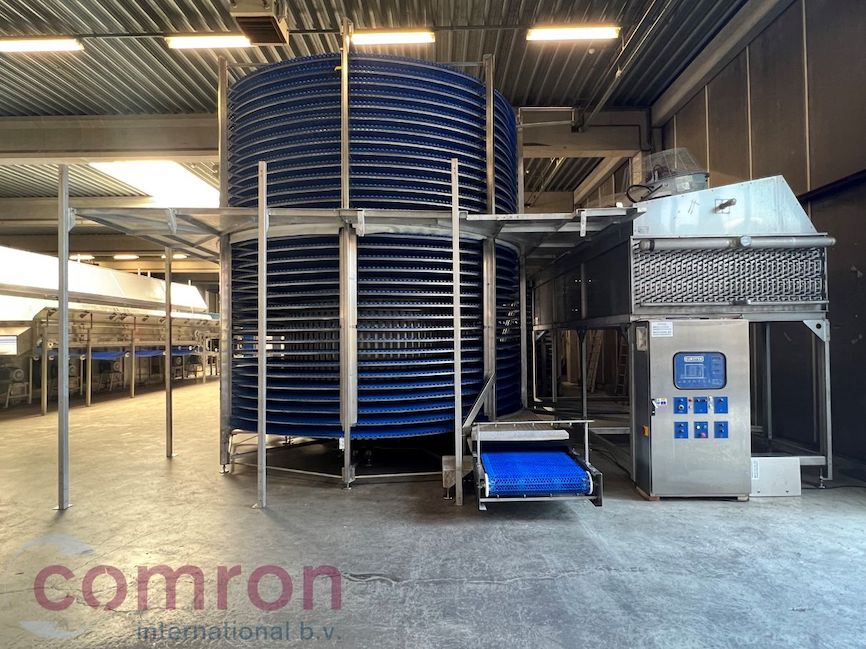

IMG_0450-Spiral Freezer280kw.jpg
IMG_0450-Spiral Freezer280kw.jpg IMG_0452-Spiral Freezer280kw.jpg IMG_2373-Spiral Freezer280kw.jpg IMG_2367-Spiral Freezer280kw.jpg IMG_2372-Spiral Freezer280kw.jpg

Description / remarks:

Used Spiral Freezer: brand EUROTEK/GEA, type RR36(16)33-140. This in very good condition spiral freezer (maintained every year by a specialized company through a maintenance contract) has a production capacity of 1.000 kg/h on basis of freezing breaded fish filet from +55°C to -18°C in the core/product. Freezing capacity with a infeed temperature of +5°C is approx. 2.500kg/h depending on the product data. Specifications of this used spiral freezer:

  • Infeed / outfeed: North/East (can also be delivered in North/North or North/South configuration at extra cost))
  • Input/output height with floor outside: ±800mm/5600mm
  • Direction of rotation of the belt: counter clockwise
  • Type of belt: plastic, acetal belt
  • Net belt width: 914mm
  • Tier pitch: 140mm
  • Maximum product height: 70mm (possibility to 100mm)
  • Number of tiers: 33
  • Effective belt length per tier: 14,95m
  • Total effective belt length: 493m
  • Belt surface: 344m2
  • Direct drum drive (drive system, gearboxes completely replaced / renewed in 2016)
  • 1 piece stainless steel freezing evaporator with 3 pieces high pressure ventilators, each 13kW
  • Stainless steel control box with original EUROTEK/GEA control system (if desired option for delivery of a new Siemens S7 PLC with Simatic touchscreen)
  • Defrost water / hot gas
  • Complete CIP cleaning system
  • Original stainless steel antislip floor, with galvanized underfloor construction
  • Construction completely made of stainless steel

This EUROTEK/GEA spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).

Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
280 kW/82.35 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
42 kW
Year of Manufacture:
2009
Dimensions (LxWxH):
890 x 550 x 600 (behuizing/housing) cm

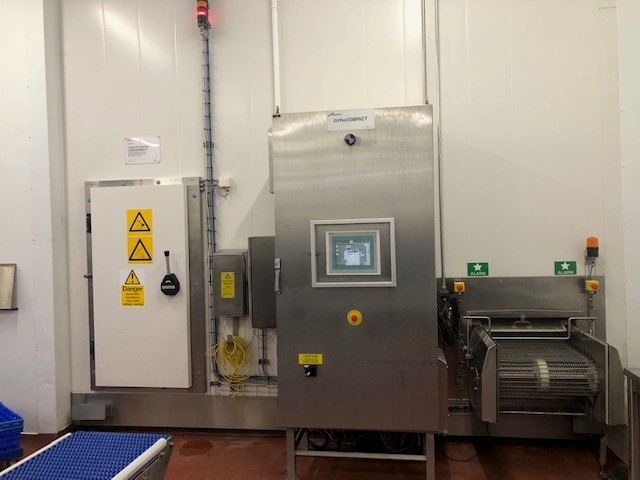

PHOTO1FrigoscandiaJBTFreezer290kW-.jpg PHOTO2FrigoscandiaJBTFreezer290kW-.jpg PHOTO3FrigoscandiaJBTFreezer290kW-.jpg PHOTO4FrigoscandiaJBTFreezer290kW-.jpg PHOTO5FrigoscandiaJBTFreezer290kW-.jpg

Description / remarks:

Used Spiral Freezer: Frigoscandia/JBT GYRoCOMPACT type M6-08-48-14-NE-CCR, order nr. 1160285. This in new condition spiral freezer, always maintained by Frigoscandia/JBT and has been in production for only 4555 running hours. Production capacity of the Frigoscandia spiral freezer is between 2.500kg/h and the 3.000kg/h depending on the product data and infeed temperature. Specifications of this used Frigoscandia spiral freezer:

  • Infeed / outfeed: North/East (if desired, we can deliver it in North/South or North/North configuration at extra cost)
  • Direction of rotation of the belt: counter-clockwise
  • Gross/net belt width: 660mm / 615mm
  • Maximum product height 65mm
  • Number of tiers: 48, (11.2m per tier = total 537.6m) belt surface 273,6m²
  • Goedhart/GEA Stainless steel evaporator, type coil Frigoscandia14, with 2 pieces high pressure fans
  • Original stainless steel switch-board cabinet equipped with Siemens S7 1200 serial, HMI touchscreen with graphical display
  • Stainless steel LVS system/tank (low volume system for low ammonia content, higher efficiency evaporators-coils, none ammonia circulation pumps needed)
  • Original isolated floor, divided in three pieces with stainless covering
  • Ammonia Frigo-pack freeze installation, built in a 20 ft container for outdoor application, type FPL 240 and has been in production for only 4555 running hours and consist of: 1 piece Grasso/GEA SP1-SB-3B screw package, with Leroy-Somer 200kW E-motor, control box with starters and Siemens PLC, eco vessel/tank, Baltimore evaporating condenser type VCL 140M, ammonia detection system
  • Total absorbed E-power Spiral Freezer and Frigo-pack Ammonia freezing plant approx. 233 kW



Spiral freezer will be delivered without isolated panels/housing (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
290 kW/85 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
33 kW
Year of Manufacture:
2007
Dimensions (LxWxH):
640 x 460 x 600 cm

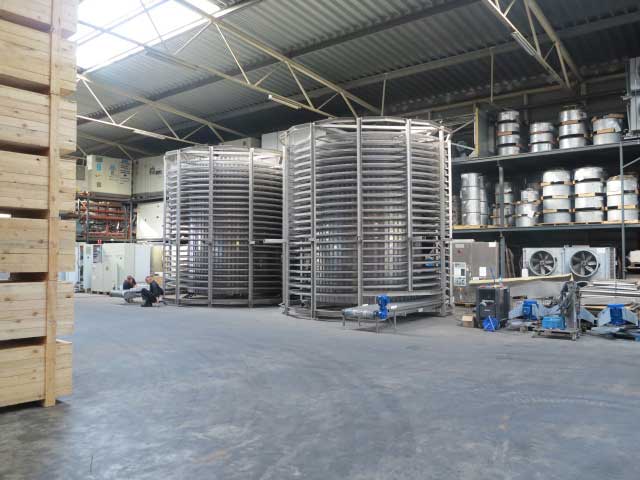

spiraal-vriezer100kW-IMG_0706.jpg spiraal-vriezer100kW-IMG_0708.jpg spiraal-vriezer100kW-IMG_0709.jpg spiraal-vriezer100kW-IMG_0711.jpg spiraal-vriezer100kW-IMG_0712.jpg

Description / remarks:

Used Twin Spiral Freezer: brand Kaak. This in very good condition twin spiral freezer has a production capacity of approx. 2.500 kg/h (based on 1000 pieces cream cakes of 2500 grams /piece) depending on the product data. Specifications of this used twin spiral freezer:

  • Mostly made of stainless steel/aluminum expect the drums (hot-dip galvanized)
  • Infeed / outfeed: North/South
  • Infeed/outfeed height: 800 mm
  • Direction of rotation of the belt: counter clockwise
  • Type of belt: stainless steel Ashworth belt B26-12-17 with integrated metal side conduction
  • Gross/net belt width: 762mm / 648 mm
  • Maximum product height: 125mm (this can also be adjusted up to a maximum of 200 mm)
  • Number of tiers: 21 per drum, total 42 pieces
  • Effective belt length 648m
  • Drum diameter inside/outside: 3357mm / 4877mm
  • Drum height: maximum 5255mm
  • Adjustable band speed: between 2,6-6,5 m/min
  • 3 pieces Güntner stainless steel/aluminum blast freeze evaporators with each 3 pieces high pressure ventilators each 4kW, total 36 kW with hot gas defrost in block and drip tray
  • Stainless steel switch-box equipped with new wiring, new Siemens PLC/Simatic touchscreen, software and new E-diagrams

This twin spiral freezer will be delivered without panels/floor/housing (if desired, this can be also arranged by Comron International BV).

Spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
300 kW/88 tons
Type of refrigerant:
R717/Freon/CO2 Pomp
Voltage:
400 V
Absorbed power:
45 kW
Year of Manufacture:
1997
Dimensions (LxWxH):
1135 x 820 x 620 cm

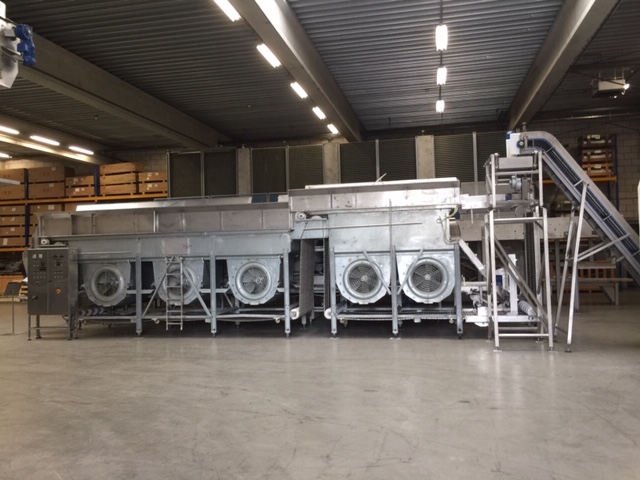

IMG_7990_400kw.flow freezer.jpg
IMG_7990_400kw.flow freezer.jpg IMG_7989_400kw.flow freezer.jpg IMG_7988_400kw.flow freezer.jpg IMG_7993_400kw.flow freezer.jpg IMG_7992_400kw.flow freezer.jpg

Description / remarks:

Used Flow Freezer: Unidex, type TZF-2K with a freezing capacity based on green peas approx.. 3.000 kg/h. This in very good condition flow freezer and ideal for all vegetable and fruit products. Specifications of this used flow freezer:

  • Plastic loading belt
  • Stainless steel infeed shaker
  • Stainless steel two-stages belt system (pre-freezing section with a belt width/length 128cm/440 cm, after-freezing section with a belt width/length 128cm/585cm)
  • 6 pieces galvanized evaporators divided in 3 blocks with a total fluid content of 930 liter with a evaporator surface of 1.604 m2
  • 5 pieces high-pressure ventilators
  • Stainless steel switch box with frequency controllers for the power transmission
  • Belt was installation with air dryer
  • Extra blast freezing tunnel (stainless steel belt with a width approx.12m and a length 128cm) that runs into the room to use as belt freezer with a maximum capacity of 800 kg/h of products.
  • Unidex Flow Freezer operates as follows: two separate belts run into the tunnel in line after each other with a pre-freezing section where the products are slightly frozen on the outside, then the products go to the after-freezing section (2nd belt) where they are frozen down to the core temperature of approx. -18°C. Beside this system, there is a 3rd belt with a length of approx.. 12 m that can be used as belt freezer where larger fruit and vegetable products can be frozen at the same time.

Mentioned cooling capacity is at an evaporating temperature of -40°C with refrigerant R717/ammonia.

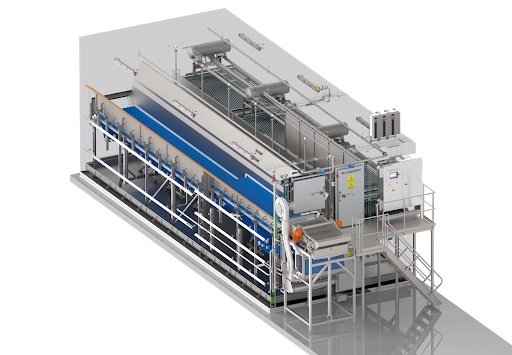

The Unidex flow freezer will be delivered without panels/housing and isolated floor (if desired this can be provided by our company).
Flow freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the flow freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
330 kW/97 tons
Type of refrigerant:
R717/Ammonia/Freon Pomp
Voltage:
400/460 V
Absorbed power:
71 kW
Year of Manufacture:
2008
Dimensions (LxWxH):
1250 x 460 x 450 cm


Octofrost 5-2-flow freezer 347kw-foto1.jpg
Octofrost 5-2-flow freezer 347kw-foto1.jpg Octofrost 5-2-flow freezer 347kw-foto2.jpg Octofrost 5-2-flow freezer 347kw-foto3.jpg Octofrost 5-2-flow freezer 347kw-foto4.jpg Octofrost 5-2-flow freezer 347kw-foto5.jpg

Description / remarks:

Used Flow Freezer: brand Octofrost type 5/2 with a freezing capacity based on green peas is approx. 3.300kg/h. This flow freezer is in a new condition with less working hours is very suitable for freezing all kinds of fruit and vegetables products, cheese products, French fries, shrimps etc.

Flow freezer is equipped with the following main components:

  • Goedhart/Kelvion stainless steel / seaworthy aluminium evaporator coil suitable for NH3/R717 and CO²/R744 pump circulation. Duty/capacity with NH3 -40°C / 347 kW and with CO² -42°C / 327 kW.
  • 5 pieces high pressure ventilator each 11kW with frequency controllers.
  • Automatic defrosting system, ADF for longer continuous freezing process, max. 22 hours production
  • Automatic CIP cleaning system
  • Switch box with Allen-Bradley PLC/HMI touchscreen display with graphic overview.
  • All original books and pressure certificates.
  • At extra costs we can also supply a complete NH3/CO2 freeze installation.

The Flow Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and delivered on 2 bar nitrogen pressure.

The Pre-owned Flow freezer will be delivered with 3 months guarantee on the main components.


Cooling capacity:
347 kW/102.05 tons
Type of refrigerant:
NH3/R717/CO²/R744 pomp
Voltage:
50Hrz/60Hrz - 400/460 V
Absorbed power:
60 kW
Year of Manufacture:
2016/2017
Dimensions (LxWxH):
695 x 300 x 300 cm
Weight (kg):
6.400 kg

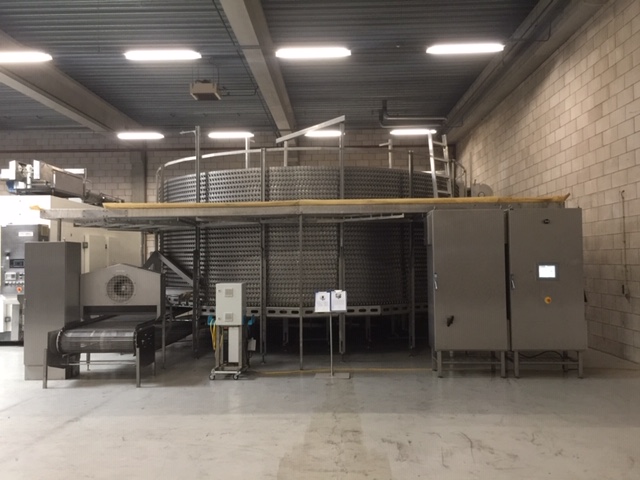

IMG_8918_390kw.spiral freezer.jpg
IMG_8918_390kw.spiral freezer.jpg IMG_8927-2_390kw.spiral freezer.jpg IMG_8924_390kw.spiral freezer.jpg IMG_8931_390kw.spiral freezer.jpg IMG_8933_390kw.spiral freezer.jpg

Description / remarks:

Used Spiral Freezer: Frigoscandia/JBT GYRoCOMPACT type M10/3+1-08-30-27+9-NW-CR-SD. This in super good condition spiral freezer (maintained by Frigoscanida/JBT through a maintenance contract, 37000 operating hours) has been designed for a production capacity of approx. 3.000 kg/h based on freezing dough products from an infeed temperature of +25°C to a core temperature of -18°C. With this spiral freezer, it is possible to reach a freezing capacity of 4.000kg/h of products depending on the product data by using the 4th additional cooler that usually is in stand by (sequence defrost) for extra cooling capacity (520kW). Specifications of this used spiral freezer:

  • Infeed / outfeed: North/West (if desired, we can deliver it in North/South or North/North configuration)
  • Direction of rotation of the belt: clockwise
  • Gross/net belt width: 1070mm/1040mm
  • Maximum product height 65mm
  • Number of tiers: 30 (17,5m2 per tire = 525m2 total belt surface),  belt length 615m
  • 4 galvanized evaporators with a maximum operating pressure of 75 bar (suitable for CO2/ammonia) block volume 513L/each: 3 rotating evaporators and one in defrost cycle (sequence defrost) that can be used to run 48 hours of production
  • Stainless steel switch box with all necessary frequency controllers, relays and Siemens S7 PLC / Simatic touchscreen control
  • CIP cleaning system, brand Frigoscandia
  • Original books, Original pressure certificate for the evaporator blocks and the drawings in AutoCad for the housing and floor

Spiral freezer will be delivered without panels/housing and isolated floor (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
390 kW/115 tons
Type of refrigerant:
CO2/R717 Ammonia
Voltage:
400 V
Absorbed power:
99 kW
Year of Manufacture:
2009
Dimensions (LxWxH):
1400 x 800 x 480 cm


IMG_2490-466.blast freezer.jpg
IMG_2490-466.blast freezer.jpg IMG_1883-466.blast freezer.jpg IMG_1886-466.blast freezer.jpg IMG_1872-466.blast freezer.jpg IMG_6206-466.blast freezer.jpg

Description / remarks:

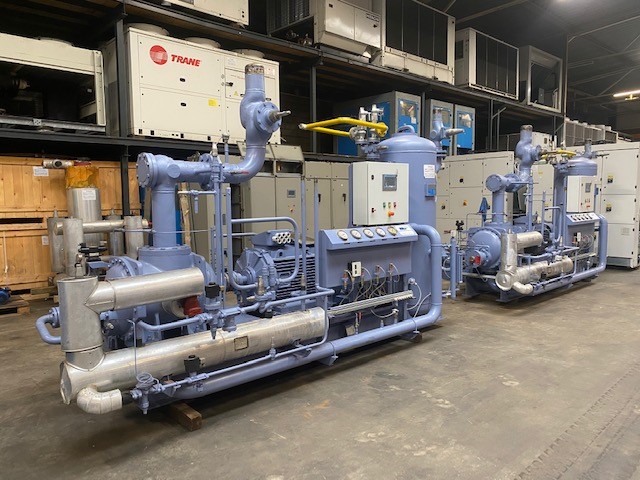

Used and in very good maintained condition complete Howden/Goedhart freezing/blast freeze installation with a freezing capacity of approx.. 5.000kg/h which depends on the type of product. This complete freezing/blast freeze installation will be composed of the following main components by Comron International:

  • 2 pieces Howden screw compressors/package, compressor type MK6B/WRV20414550/679
  • Each screw package/unit equipped with Leroy-Somer 200kW E-motor, water-cooled shell&tube oil cooler, vertical oil separator, oil pump, closed intercooler eco, control box with new Siemens S7 PLC/Simatic touchscreen
  • Low pressure separator -40°C brand Cofrin volume 3,5m3 built on frame with 2 pieces Hermatic CAM 2/3 ammonia liquid pumps
  • High pressure liquid tank brand Cofrin volume 1,5m3
  • Oil cooling through Baltimore cooling tower type VFL 241 HXR
  • 2 pieces Goedhart PLK.S standing blast/freezing evaporators, completely made of stainless steel and equipped with seaworthy aluminum fins(fin space in 28mm, out 7mm), hot gas defrost in drip tray and evaporator block and 4 pieces Nuaire high pressure ventilators
  • Evapco evaporating condenser type LSCB-185
  • Custom made switch-box with new Siemens S7 PLC/Simatic touchscreen, Siemens soft starters for the 200kW E-motors and new software
  • Software en E-schema's
  • All requested valves, Danfoss control stations, floaters, P&ID drawings, E-drawings and PED pressure certificates

Mentioned cooling capacity is with the refrigerant R717 at-40°C /+35°C with eco, absorbed power approx.. 350kW.



This installation is very suitable for blast freezer room to freezing meat products in carton boxes.


Cooling capacity:
466 kW/137 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
350 kW
Year of Manufacture:
2006/2016


DSCN6850.JPG DSCN6841.JPG DSCN6840.JPG DSCN6842.JPG DSCN6844.JPG

Description / remarks:

Used Spiral Freezer: brand Thriphase type T303. This in mint condition spiral freezer has a freezing capacity of max. 2.340 kg/h based on potato products with an infeed temperature of +80°C. Production capacity depends on the product data. Specifications of this used spiral freezer:

  • Completely made of stainless steel
  • Infeed / outfeed: North/South
  • Infeed/outfeed height: 90 mm / 4165 mm
  • Type of belt: new stainless steel Ashworth 1” pitch Omnigrid fine mesh belt with B26-12-17 mesh overlay and stainless steel flites fitted to both edges
  • Gross/net belt width: 660 mm / 610 mm
  • Belt length: 371 m
  • Effective belt length: 260 m
  • Maximum product height: 45 mm
  • Number of tiers: 28
  • Minimum/maximum belt speed: 7- 15 m/min.
  • Drum drive by chain
  • Stainless steel evaporator with 4 pieces high pressure ventilators of each 17kW with a total air flow of 180.000 m³/h and split up in 3 blocks of each 242kW at an evaporating temperature of -40°C, hot gas defrost
  • Stainless steel switchboard cabinet with Siemens PLC S7/Simatic touchscreen with graphical display
  • Defrost system by running fans after production (max.18 hours depending on the amount of snow on the evaporator)
  • Belt wash installation
  • The spiral freezer is designed in such a way that the freeze down process can be continued during a very long period of production by placing an extra evaporator block of 242kW (sequence defrost). During a defrost cycle with hot gas one cooler will be disconnected by means of an automatic sliding door, which guarantees the air flow by the other two remaining coolers.

This spiral freezer will be delivered without panels, floor and housing (if desired this can be provided by our company).

Freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
482 kW/142 tons
Type of refrigerant:
NH3/Freon Pomp
Voltage:
400 V
Absorbed power:
73 kW
Year of Manufacture:
2000
Dimensions (LxWxH):
975 x 670 x 450 cm


IMG_3335_420kw.spiral.JPG IMG_3337_420kw.spiral.JPG IMG_3338_420kw.spiral.JPG IMG_3336_420kw.spiral.jpg 420kw-IMG_6111.jpg

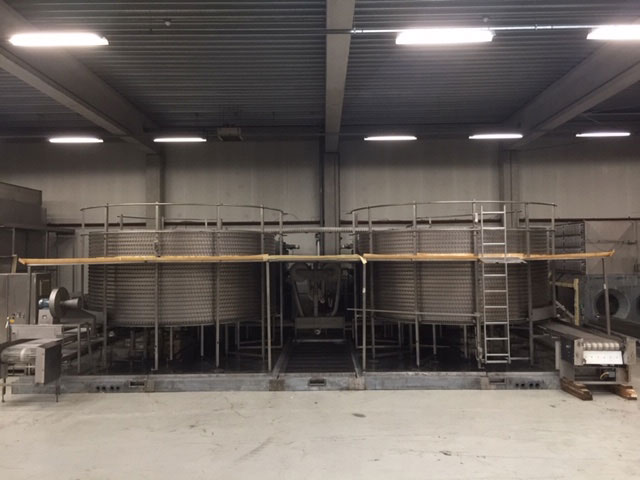

Description / remarks:

Used Twin Spiral Freezer: brand Frigoscandia/JBT GYRoCOMPACT type GCM 76-08-23/23-16/16TS 0-9605/-07830002. This in new condition twin spiral freezer (always maintained by Frigoscanida/JBT) has a production capacity of approx. 3.500 kg/h – 4.000 kg/h depending on the product datas. Specifications of this twin used spiral freezer:

  • Infeed / outfeed: North/North
  • infeed/outfeed height: 760 mm / 760 mm
  • Direction of rotation of the belt: clockwise
  • Gross/net belt width: 760mm / 715mm
  • Maximum product height 65mm
  • Number of tiers per drum : 23, belt length 656m belt surface total 350m2,
  • 2 pieces galvanized evaporator blocks with total 4 pieces high pressure fans
  • ADF defrost system for a continuous freezing process, maximum 22 hours of production
  • Original switchboard cabinet with Siemens PLC.
  • Original stainless steel floor

This twin spiral freezer will be delivered without panels/housing (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
510 kW/150 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
88 kW
Year of Manufacture:
1993
Dimensions (LxWxH):
854 x 1100 x 450 cm

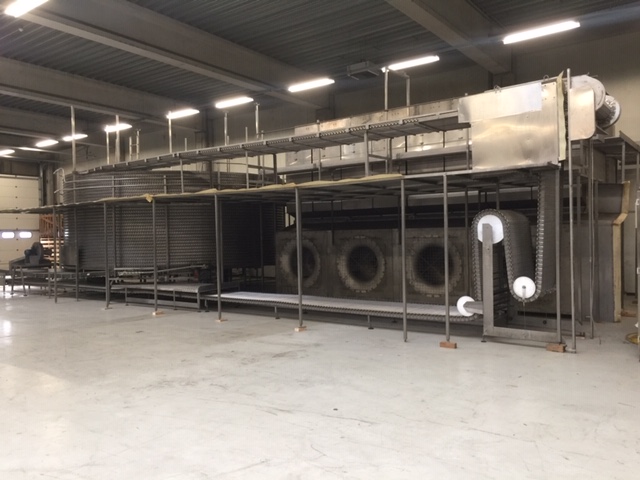

IMG_1866-850kw.spiral.frezer.jpg IMG_8179_850kw.freezer.jpg IMG_8181_850kw.freezer.jpg IMG_1864-850kw.spiral.frezer.jpg IMG_1862-850kw.spiral.frezer.jpg

Description / remarks:

Used Spiral Freezer: brand Frigoscandia/JBT GYRoCOMPACT type M-106-08-32-60 (+20) -NS-CCR-SD-FD. This in excellent condition spiral freezer (always maintained by Frigoscanida/JBT) has been designed for a production capacity of approx. 5.000 kg/h based on freezing potato products from an infeed temperature of +60°C to a core temperature of -18°C. With this spiral freezer, it is possible to reach a maximum freezing capacity of 7.000kg/h with an inlet temperature of +10°C, which depends on the product datas. Specifications of this used spiral freezer:

  • Infeed / outfeed: North / South
  • Direction of rotation of the belt: counter clockwise
  • Gross/net belt width: 1060mm/1004mm
  • Maximum product height 65mm
  • Number of tiers: 31 (17,5m2 per tire = 542,5m2 total belt surface),  belt length 635,5m
  • 8 pieces galvanized freeze evaporators, each volume 490L and surface 8400m², complete with hot gas stations, brand Danfoss and 4 pieces evaporator ventilators.
    The evaporator / evaporator blocks are designed to be frozen continuously 24 hours a day for at least a week during a very long production period. This is related to the installation of an extra evaporator block (sequence defrosting).
  • Stainless steel switch box with all necessary frequency controllers, relays and Siemens S7 PLC / Simatic touchscreen control (separate Siemens touchscreen built in a small stainless steel housing, that is placed on the front of the spiral freezer)
  • CIP cleaning system, brand JBT
  • Original books and the drawings in AutoCad for the housing and floor

Spiral freezer will be delivered without panels/housing and isolated floor (if desired, this can be also arranged by Comron International BV).

The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
850 kW/250 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
106 kW
Year of Manufacture:
2004
Dimensions (LxWxH):
830 x 1624 x 575 cm

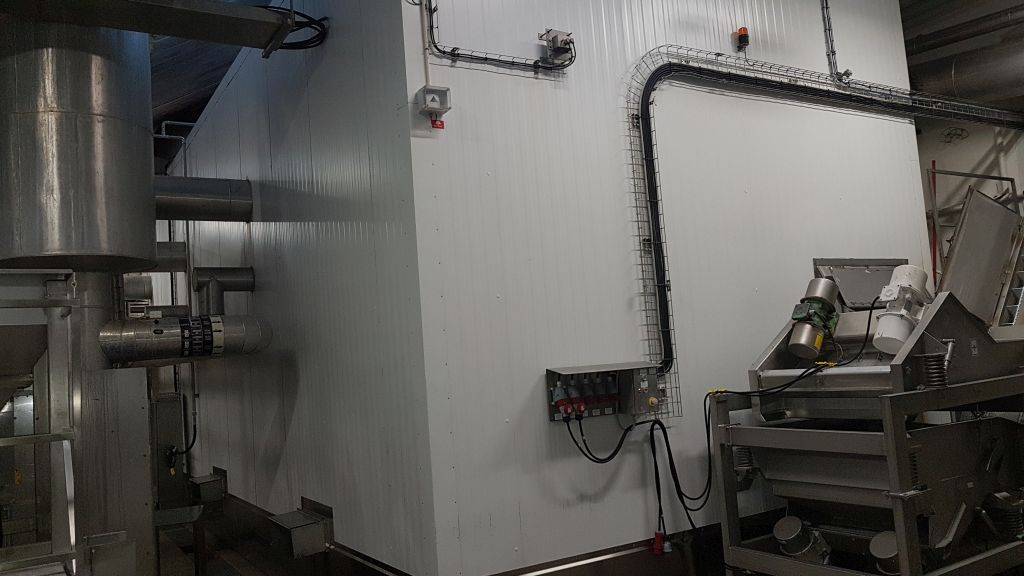

957kw_1FindusJBT-Frigo-FFM3T-ADF.jpg 957kw_9FindusJBT-Frigo-FFM3T-ADF.jpg 957kw_3FindusJBT-Frigo-FFM3T-ADF.jpg 957kw_13FindusJBT-Frigo-FFM3T-ADF.jpg 957kw_4FindusJBT-Frigo-FFM3T-ADF.jpg

Description / remarks:

Used Flow Freezer: brand Frigoscandia/JBT type FF M3 TRAY/LVS with a freezing capacity of 7.500kg/h based on green peas (we can also calculate this for you for another type of product). This in very good condition flow freezer is very suitable for freezing of all vegetables and fruit products, cheese products, French fries, shrimps, etc. Specifications of this used flow freezer:

  • Housing/panels and floor made of inside stainless steel - outside white
  • Stainless steel infeed shaker
  • Shaking belt, consisting of stainless steel perforated tray
  • ADF System (automatic defrost system for a longer continuous flow freeze process, max. 22 hour production)
  • Air pulsation system
  • Stainless steel switch-board with Siemens S7 PLC/Simatic touchscreen
  • LVS system/tank (low volume system for low Ammonia content, higher efficiency evaporator coils, no liquid pumps required)

Flow freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the flow freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
957 kW/281 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
160 kW
Year of Manufacture:
2010
Dimensions (LxWxH):
1155 x 520 x 510 cm

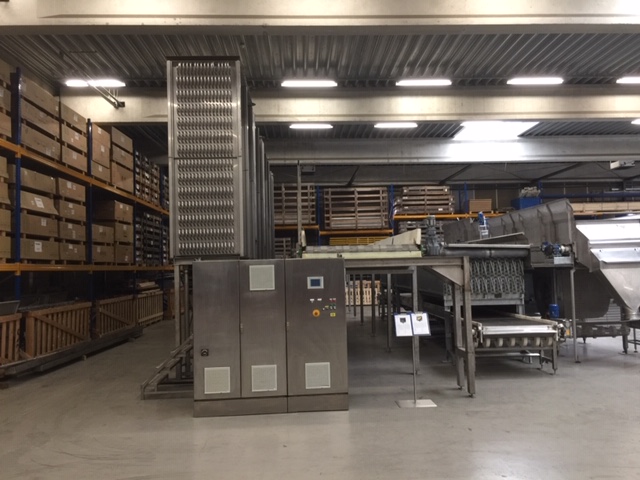

IMG_8019_1000kw.freezer.jpg IMG_7978_1000kw.freezer.jpg IMG_8015_1000kw.freezer.jpg IMG_7984_1000kw.freezer.jpg IMG_1878_1000kw.freezer.jpg

Description / remarks:

Used Flow Freezer: brand SAB (manufacturer SAB Barth GmbH, Germany) with production capacity of 7.500 kg/h, based on French fries with an infeed temperature of + 10°C and an output temperature of -18°C in the core. This, in condition as new flow freezer is very suitable for all vegetables and fruit products, cheese products, French fries, shrimps, etc. Specifications of this used flow freezer:

  • Completely made of stainless steel
  • Stainless steel Ashworth single-stage belt system type OGB with the dimension of 12500mm x 1820mm
  • Infeed/outfeed height: 2600mm
  • 4 pieces Thermofin stainless steel / aluminum standing freezing evaporators each 250kW at -38°C ammonia pump circulation
  • 8 pieces high pressure ventilators each 10kW with a total air flow of 312.000 m3/h
  • Stainless steel switchboard cabinet with Siemens S7 PLC/ Simatic touch screen



Flow Freezer can optionally be supplied with an extra pre-cooler/freezer to, for example, cool fries from approx. + 80°C to +10°C that come directly from the oven. At additional price, we can deliver this freezer with new housing/panels (type from inside made of stainless steel, outside white).

Flow freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the flow freezer will be delivered with a 3 months guarantee on the main components.


Cooling capacity:
1000 kW/294 tons
Type of refrigerant:
R717/Ammonia
Voltage:
400 V
Absorbed power:
95 kW
Year of Manufacture:
2007/2008
Dimensions (LxWxH):
1300 x 500 x 620 cm

Comron Used To Cool
