Description / remarks:

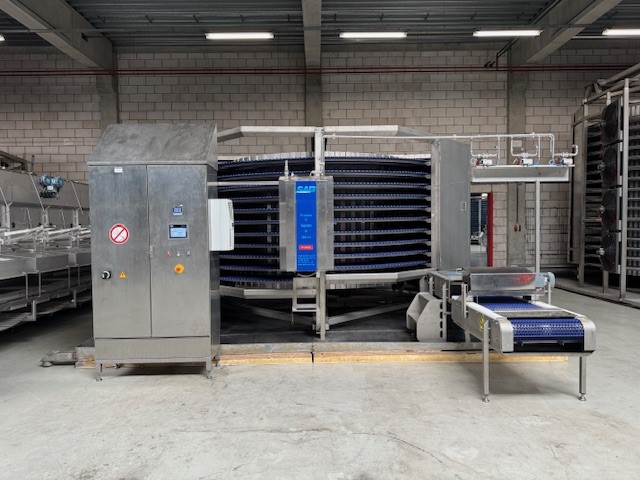

Used and in very good condition spiral cooler/spiral freezer brand SAB, type SK-S/1 11.25-660. This in new condition spiral cooler/freezer (only 1 year in production) has a production capacity of 1,750 kg/h of chocolate products from +80 °C to +5 °C in the core of the product. If desired, we can convert this spiral cooler into a spiral freezer at additional costs, with a maximum freezing capacity of approx. 1250kg/h depending on the product data.

Specification of this used spiral cooler/freezer:

  • Input/Output: North/East (If desired, we can convert this spiral cooler/freezer to a North/South or North/North configuration at an additional cost.
  • Direction of rotation of the belt: counterclockwise.
  • Gross/Net band width 660/600mm.
  • Belt type: Plastic.
  • Maximum product height 100mm.
  • Number of tiers 11.25.
  • Total effective belt length 158M, including input/output.
  • Drum diameter 315cm.
  • GEA/Goedhart stainless steel cooling evaporator type PLK. S - 1285m² - Factory number PJV12131 - 304dm³ - 1.620kg. Fluid E-Glycol equipped with 6 pieces of Nuaire high-pressure fans (at an additional cost we can carry out the cooler block for NH3 application).
  • Stainless steel control box with Siemens S7 1200 series, HMI touchscreen with graphical displays.
  • SAB SIP cleaning system.
  • Original stainless steel floor.
  • Construction is made entirely of stainless steel.

Cooling capacity:
140 kW/41.17 tons
Type of refrigerant:
Glycol/NH3 pomp
Voltage:
400 V
Absorbed power:
9 kW
Year of Manufacture:
2013
Dimensions (LxWxH):
810 x 586 x 305 cm
