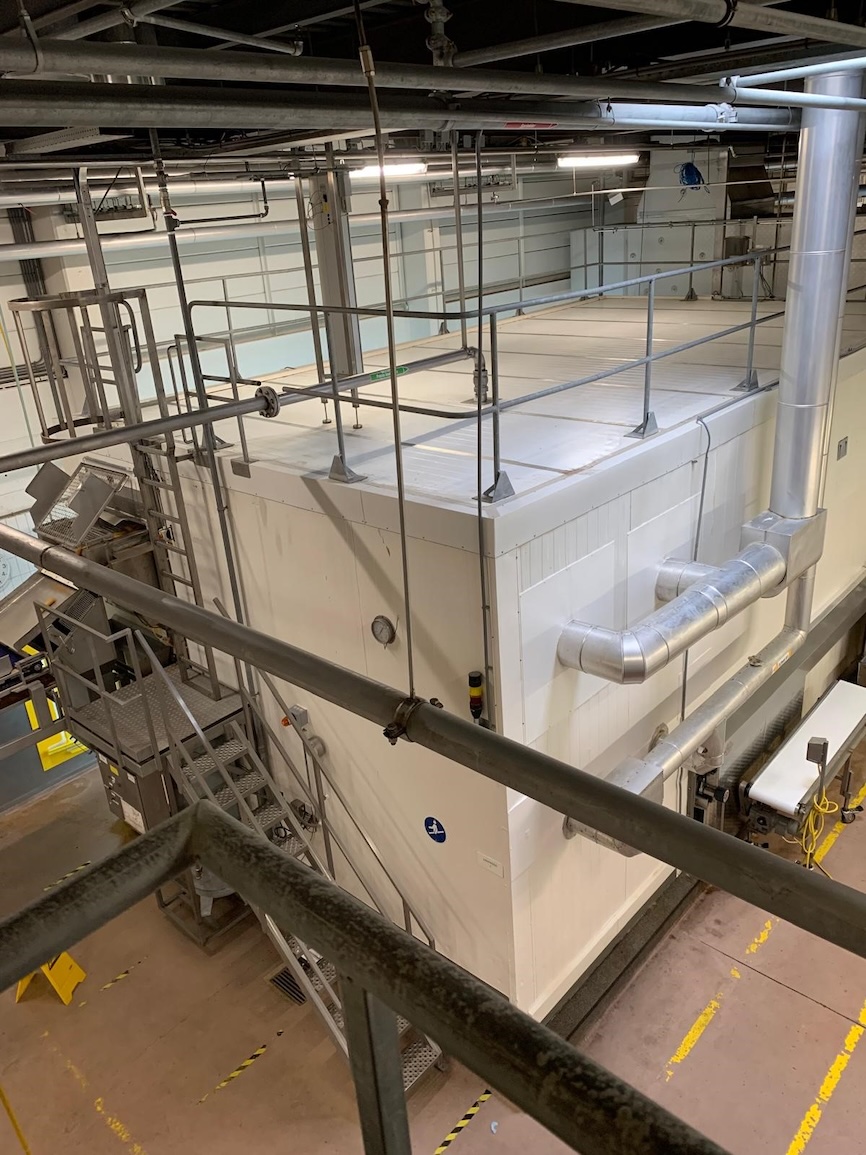

Used Spiral freezer: brand GEA 42(1.7)15-5-210. This spiral freezer in very good condition has a production capacity of approx. 1,500 kg/h based on cake products, with an inlet temperature of +15°C. The freezing capacity depends on the type of product and input temperature.
Specifications of this used spiral freezer:
- Input/output: North/North (at extra cost we can carry it out in a North/South configuration.)
- Direction of rotation of the belt : clockwise.
- On the front side 7.20M left side input, right side output.
- Input/output height with floor : 925mm/428mm.
- Belt type: 42(1.7) 16-210 Asworth stainless steel.
- Gross/net bandwidth 1066mm / 1016mm
- Maximum product height 120mm
- Height between the tiers (tier pitch) 210mm
- Number of tiers per drum 15.5 (length band per tier 18.09M)
- Belt length effective 280M / effective belt area 232M²
- Drum drive direct.
- Stainless steel Goedhart/Kelvion DX freezing evaporators with 4 pieces of high pressure fans each 15kW, with the option of water defrosting after 120 hours depending on the product data.
- Stainless steel control cabinet with PLC.
- Original books with pressure certificates for the evaporators, drawings of the spiral freezer, housing and floor.
- At extra cost: built in a low-noise container Bitzer DX screw freezer installation consisting of: -2 pieces semi hermetic screw compressors type HSN-8591-160-40P
- Control cabinet
- High pressure liquid tank
- Liquid separator
- Oil separator
- Eco tank
- Separate GEA air cooled condenser
- Design data of the Bitzer installation 220 kW at -38°C evaporation.
- Complete metal frame for the floor of the spiral freezer.
This spiral freezer will be delivered without floor/panels/housing (if desired, this can be also arranged by Comron International BV).
The spiral freezer will be completely checked by Comron International after sale in case of mechanical/electrical defects. The gearboxes will be supplied with new oil, the evaporator blocks will be tested on nitrogen pressure and the spiral freezer will be delivered with a 3 months guarantee on the main components.
