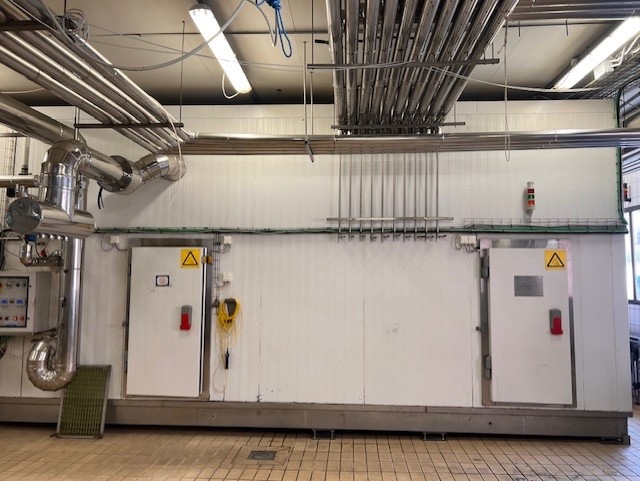

Used Frigoscandia spiral freezer Model: GC-600-08-24-14-NS 600 Classic

This in new condition spiral freezer always maintained by JBT has a production capacity between 2,000 and 2,500 kg/h depending on the type of product and input temperature.

Specification of this used spiral freezer:

• Input/Output: North/South.
• Direction of rotation of the belt: counterclockwise.
• Net band width 600mm.
• Maximum product height 65mm.
• Number of tiers 24.
• Total effective belt length 269M.
• Güntner stainless steel evaporator type DX approx. 250 kW / -40°C type 14 equipped with 2 high-pressure fans.
• Stainless steel control box with Siemens PLC.
• All original books, manuals, and PED pressure certificates.
• At an additional cost we can supply the Frigoscandia spiral freezer with a Freon Bitzer screw freezing installation or an Ammonia freezing installation with new Goedhart/Kelvion NH3 evaporators.
